Version 1.0 | June 2025 | Powered by ThingsLinker
Ultra-Compact. Efficient. Reliable.

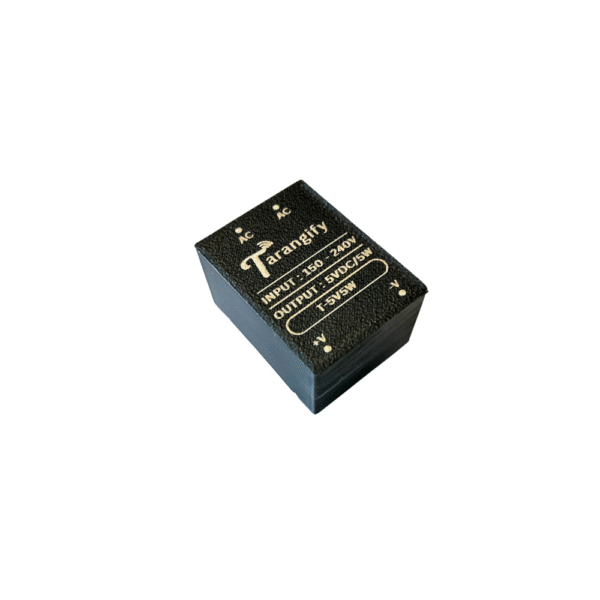

The Tarangify T-5V5W is a compact, high-efficiency AC-DC SMPS module designed to power up your IoT devices, embedded systems, and smart automation projects. With a 5V DC output and up to 5W power delivery, it’s the perfect solution for a wide range of low-power electronics.
Applications
- IoT devices and gateways
- Smart home systems
- Embedded electronics
- Industrial automation equipment
- LED driver circuits
- Wireless sensor modules
- DIY and prototyping boards
Electrical Specifications
- Input Voltage: 150V to 265V AC
- Input Frequency: 50/60 Hz
- Output Voltage: 5V DC (typical)
- Output Power: 5W max
- Output Current: Up to 1200mA
- Built-in ripple and noise suppression
- High hold-up time and low inrush current
Mechanical Specifications
- Dimensions: 38mm (L) x 23mm (W) x 18mm (H)
- Weight: ~38 grams
- Mounting: Through-hole
- Case Type: Fully potted plastic enclosure

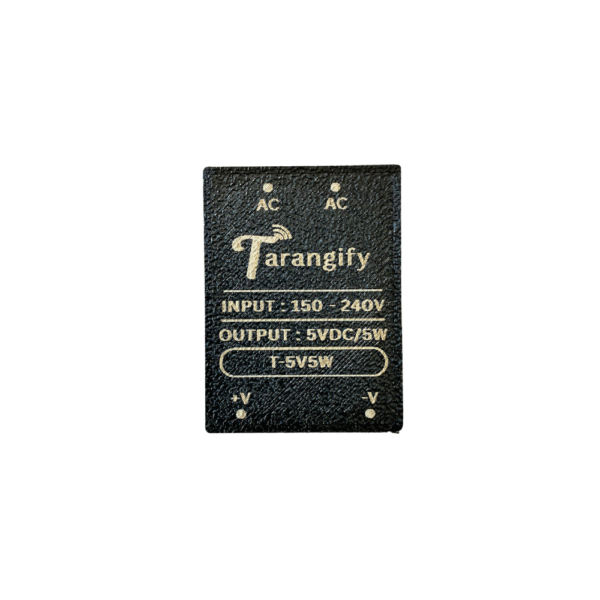

Pin Configuration
| Pin No. | Name | Description |
|---|---|---|
| 1 | AC (L) | AC Line Input |
| 2 | AC (N) | AC Neutral Input |
| 3 | -V | DC Ground Output |
| 4 | +V | DC Positive Output |
Protections
- Over-voltage protection
- Over-current protection
- Short-circuit protection
- Surge and inrush current limiting
Environmental Ratings
- Operating Temperature: -15°C to +55°C
- Storage Temperature: -20°C to +75°C
- Humidity (non-condensing): 10% to 90% RH
- Cooling Method: Natural convection
